300x300mm Desktop PCB Depaneling Router Machine

  • 1
  • 2

Brand Name : Winsmart

Model Number : SMTDR300

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : USD6000-10000/unit

Payment Terms : T/T

Supply Ability : 500 units per year

Delivery Time : 5-8 working days

Packaging Details : plywood case

Change Cutter : Manual

Vacuum : Yes

Spindle Quantity : 1

Max Pcb : 300x300mm(standard)

Coolingsystem : Air

Routing Bit : Dia 0.8-3.0mm

Separating Speed : 1-100mm/s

Cutting Width : 2-6mm

Platform : Single

Condition : New

Feeding : Manual

Weight : 75 kg

Contact Now

300x300mm Desktop PCB Depaneling Router Machine
Desktop PCB Depaneling Router Introduction:

This table type bench-top PCB router machine is used local brand spindle motor and vacuum cleaner. Milling cutter will be used for PCB cutting, and it is available for aluminum PCB boards. Different diameter cutters are available for different dimension milling joints. Customized made fixtures ensure smooth and precise cutting to protect components.

Desktop PCB Depaneling Router Features:
  • Bench-top single-table PCB router with speeds up to 100mm/s and positioning speeds of 500mm/s.
  • Uninterrupted continuous cutting during loading and unloading.
  • High-quality spindle system enables the system to accelerate and decelerate quickly, reducing synchronization time and increasing productivity while maintaining high precision.
  • Use high quality hardware to ensure high steel and high performance.
Desktop PCB Depaneling Router Specifications:
Model SMTDR300
Drive system motor servo / stepper motor
Spindle domestic / imported spindle
Cutting performance 500mm / s
Drive system repeatability ± 0.02mm
Cutting speed Max 100mm / S depends on PCB material and cutting quality
Resolution ±0.01mm
XYZ Stroke 300x300x100mm(Could be customized made)
PCB positioning special or standard fixture
Handling method manual mode
Thickness of circuit board 0.4mm-4mm
Spindle power 0.5 kW
Spindle speed 40,000 rpm
Machine size 650*550*615mm
Weight 73KG
Desktop PCB Depaneling Router Applications:
  • Used for New Product Introduction (NPI) and product development.
  • Enables engineers and designers to depanel boards without waiting for mass-production equipment.
  • Supports batch production of small devices like sensors, control boards, or custom electronics.
  • Suitable for environments that produce multiple types of PCBs with frequent changeovers.
  • Easy to reprogram and adjust for different panel designs and routing paths.
  • Used to depanel PCBs in devices like smart remotes, wearables, and other compact gadgets.
  • Ensures clean, burr-free edges without damaging sensitive components.

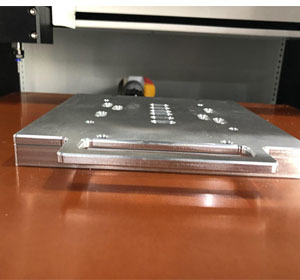

300x300mm Desktop PCB Depaneling Router Machine 300x300mm Desktop PCB Depaneling Router Machine
Why Choose A Desktop PCB Depaneling Router Machine?
Benefit Explanation
Compact Footprint Fits easily on a workbench or lab table, ideal for space-limited environments.
Cost-Effective Lower investment compared to inline or hydraulic systems.
High Precision Uses CNC-controlled routing for clean, accurate cuts.
Minimal Board Stress Non-contact cutting prevents component damage or microcracks.
Flexible Programming Easily set up new jobs for different board layouts.
Easy to Operate User-friendly interface with minimal training required.

Quality 300x300mm Desktop PCB Depaneling Router Machine for sale
